Custom Feedthru Capacitor Fabrication Services

Industrial Applications of Feedthru Capacitors

Feedthru capacitors prove beneficial in a broad range of applications, including but not limited to:

  • Aerospace Equipment
  • Commercial Products
  • Communication Systems
  • Medical Equipment
  • Military Equipment
  • Radar Systems
  • Rocket and Missile Launching Systems
  • Telecommunications Devices

Filtering Range

The effective range for filtering with standard discrete component interference filters starts at just several kilohertz and increases to tens of megahertz. The necessary radio frequency interference (RFI) filtering range also starts at a few kilohertz but tops out at one or more gigahertz. Your typical bypass capacitor won’t be able to effectively achieve RFI filtration as it starts becoming less effective at anywhere from 10 to 50 MHz.

Resistance, Inductance, Capacitance, and Impedance

Standard capacitors have series equivalent resistance and inductance. The equivalent inductance and capacitance create a series resonant frequency, at which the capacitor impedance reaches its minimum levels. When noise frequency rises, the capacitor experiences a net inductive reactance that goes up in tandem with any additional frequency increases. Bypassing to ground in this case is increasingly ineffective. Acting as a coupling path, inter-lead parasitic capacitance decreases the filtering effect. Also, standard capacitors aren’t the appropriate choice for filtration as they typically result in high impedance, which negatively impacts filtering circuits’ functionality. Often, this occurs as shunt inductance.

Feedthru capacitors, however, offer exceptional high-frequency EMI filtering and input/output coupling prevention. This is due to the capacitors’ isolation mountings as well as their minimal bypass impedance and parasitic inductance. Also, they won’t introduce inductance in the filter’s shunt branch like standard varieties. Instead, inductance presents itself in their series branch.

Interference

Feedthru capacitors have frequent applications in suppressing damaging interference in the following:

  • AC/DC Power Supply Lines
  • Power Converters
  • Base Station Electronic Circuitry
  • Shielded Areas
  • Phone Exchanges

Custom Feedthru Capacitors From Captor

At Captor, we offer custom fabrication services to develop feedthru capacitors for clients in diverse industries. Our talented team will design, engineer, manufacture, and assemble your ideal feedthru capacitor based on your unique specifications and application requirements. We emphasize quality in our work so that you can develop reliable, high-performance electrical and electromechanical products.

When you purchase a Captor capacitor, you can expect:

  • High Self-Resonant Frequency (SRF)
  • Low Equivalent Series Resistance (ESR)
  • Zero or Minimal Lead Inductance
  • Frequency Ranges From DC to 400
  • Voltages of 0 to 750 VAC and 0 to 1000 VDC
  • Currents of 0 to 1000 A
  • Tolerances of ±10%
  • Extensive Material Stock to Choose From

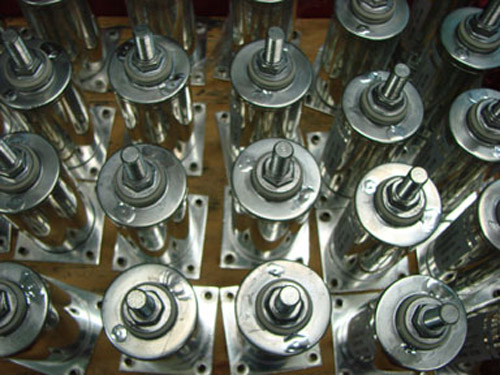

We offer a selection of custom feedthru capacitors to best meet the demands of varied industries and applications. Captor designs its high current feedthru capacitors with a rugged four-point bulkhead mounting configuration. As for our high current mini feedthru capacitors, we offer two varieties: bolt-in high current mini feedthru capacitors and jam nut high current mini feedthru capacitors. These capacitors adhere to all applicable MIL-PRF-15733H requirements.

High Current Feedthru Capacitor Specifications

One of our high current feedthru capacitor options is the Feedthru # FT-8300, 100 VDC High Current Feedthru Capacitor, which we’ll use as a sample of the specifications you can expect to see for such products.

Mechanical

  • Brass Case and Terminal Material With an Electro Tin-Lead Reflow Finish
  • 10-32-UNF Termination and Unit Mounting
  • 18 lb.-in. Torque, Max.

Electrical

  • 0.5 µF Capacitance
  • 100 VDC Rating
  • 0 to 36 A Current Rating
  • 50 to 400 Hz AC Rated Operating Frequency
  • ±10% Tolerance
  • 4.2 Times the Rated VDC Dielectric Withstand Voltage (DWV) for AC Rated Capacitors
  • 2 Times the Rated VDC DWV for DC Rated Capacitors
  • >1000 MΩ Insulation Resistance at 100 VDC

Environmental

  • -55 to 85 ºC Operating Temperature Range

High Current Mini Feedthru Capacitor Specifications

Using our Bolt-In 8-32UNC-2A DC – 60 Hz and Jam Nut 8-32UNC-2A DC – 60 Hz High Current Mini Feedthru Capacitors as examples, we’ve included below the possible mechanical, electrical, and environmental specifications.

Mechanical

  • Brass Case Material
  • Brass Threaded Terminal Material
  • Electro Tin-Lead Reflow Case and Terminal Finish
  • 8-32UNC-2A Threaded Terminal Line Terminations
  • 8-32UNC-2A Threaded Terminal Load Terminations
  • 0.2 lbs. in Weight
  • 14 lb.-in. of Terminal Torque, Max.

Electrical

  • 140 VAC Rating
  • 250 VDC Rating
  • 25 A Current Rating
  • 60 Hz DC Frequency
  • 600 VDC DWV
  • 5000 MΩ Min. of Insulation Resistance at 100 VDC
  • <0.7% Dissipation Factor at 1 kHz

Environmental

  • -55 to 85 ºC Operating Temperature Range
  • -55 to 105 ºC Storage Temperature Range

Learn More About Captor Corporation's Custom Feedthru Capacitor Fabrication Services

Feedthru capacitors are uniquely capable of meeting the performance demands of filtering circuits. Choosing a custom feedthru capacitor for your project, however, will provide you with a high-performance solution tailored to your exact needs.

Since our founding in 1965, Captor Corporation has developed into an industry-leading provider of custom feedthru capacitor engineering and fabrication services to industries requiring high-quality electrical and electromechanical components. Our highly experienced team and Captor’s advanced 35,000-square-foot engineering and manufacturing facility allow us to create custom products quickly and at competitive prices without sacrificing quality.

We’re committed to delivering unparalleled EMI filtration solutions for complete customer satisfaction. Contact us to learn more about our fabrication services for custom high current feedthru capacitors, or request a quote today to get started.
